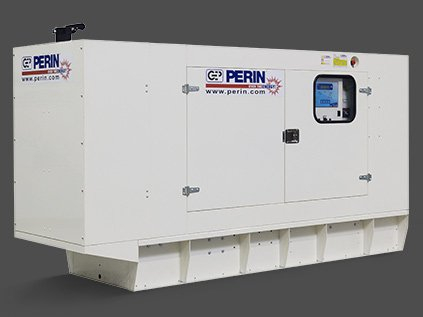

GHIBLI

DIMENSIONS

3100x1000x1600 h mm

WEIGHT

20/35 q

TANK CAPACITY

120/300 l.

LARGER TANK

300/500/1000 l.

TECHNICAL CHARACTERISTICS

• Cowling structure fully in galvanised steel
• Special epoxy powder painting (thermosetting plastic) with high corrosion resistance
• All visible small parts, hinges, handles, locks are in corrosion resistant stainless steel
• Central lifting hook in high resistance titanium, removable if necessary
• Muffler built into the cowling, complete with rain-proof throttle
• Wide span folding doors that are locked with a key
• Standard soundproofing at dba 65 / 70
• Versions with lower sound effect are also available: 60 , 55 , 50 dba
• The latest generation of mufflers designed in full compliance with the strictest regulations on pollution and noise
• External inspection window for controlling and supervising the condition of the electric generating set from outside
• Spacers under the base to permit lifting with a forklift
• Intake and expulsion panels completely covered in oil-proof fire resistant rock wool
• Sound-proofed doors completely covered in oil-proof fire resistant rock wool
• Sound-proofed doors covered in galvanised plate for containing the sound insulating material
• Servo-assisted panel with visual control of all the functions and machine status
• We can provide larger tanks on the machine as an option
• Upon request, we can supply tanks for additionally expanding the autonomy of the electric generating set
